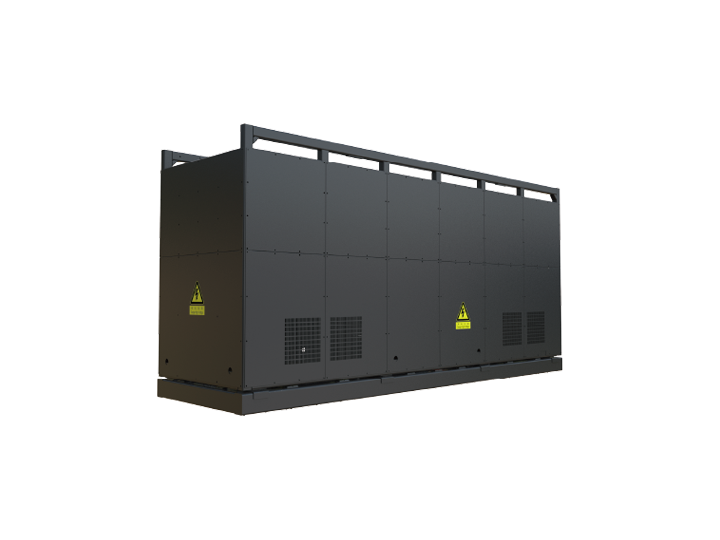

Mining Truck

Power Battery Box Assembly | Non Road Series

High battery capacity, supports high current charging and discharging

Pack system and water-cooled unit isolated design, dust free

Integrated charging and swapping design, compatible with mining card platform swapping solutions

The battery capacity can be selected from 426 to 800 degrees, and it is compatible with batteries from different manufacturers

Standardized group products, no need for secondary debugging by car manufacturers

Product Features

1.High capacity with support for high-current charging and discharging

2.Pack system features isolated design from water-cooled units, eliminating dust concerns

3.Integrated charging and swapping design compatible with mining truck battery swap solutions

4.Capacity options ranging from 426 to 800 kWh, compatible with batteries from various manufacturers

5.Standardized packaged products requiring no secondary tuning by vehicle manufacturers

Product Advantages

Adaptability

Meet the product needs of high-end customers for mining scenarios

Discharge capacity

1400A high current charging and discharging capability

Frame structure

Meet the most stringent vibration test spectrum requirements

Platform based architecture

Can adapt to CATL and Qiyuan battery products

Details Parameters

Name	MTP426	MTP568
Rated Capacity (kWh)	426.6	568.8
Rated Voltage (V)	618.2	618.2
Rated Charge/Discharge Capacity (A)	650/650	800/920
Battery Brand	Origin	Origin
Battery Model	CTB Box	CTB Box
Thermal Management Approach	Liquid-cooled and heated	Liquid-cooled and heated
Communication Protocol	GB/T 27930	GB/T 27930
Overall Dimensions (mm)	3500(L)1250(W)1820(H)	3500(L)1250(W)1820(H)
Protection Rating	IP67	IP67
Upper Frame System Weight (t)	5.0	6.0
Weight of vehicle-mounted base support system (t)	1.2	1.2

Name	MTP CTB800 / MTP Q800 / MTP 800	MTP 1000 / MTP Q1000
Rated Capacity (kWh)	801.2	1001.5
Rated Voltage (V)	618.2	772.8 / 618.2
Rated Charge/Discharge Capacity (A)	800 ~ 1000 / 1000	1000 ~ 1200 / 1000 ~1200
Battery Brand	Origin / CATL	Origin
Battery Model	CTB	T01
Thermal Management Approach	Liquid-cooled and heated	Liquid-cooled and heated
Communication Protocol	GB/T 27930	GB/T 27930
Overall Dimensions (mm)	350012502080mm 430012801520mm 430014001520mm	430014001835mm
Protection Rating	IP67	IP67
Upper Frame System Weight (t)	7.0 ~ 7.8	9.3
Weight of vehicle-mounted base support system (t)	1.2 ~ 1.3	1.3
