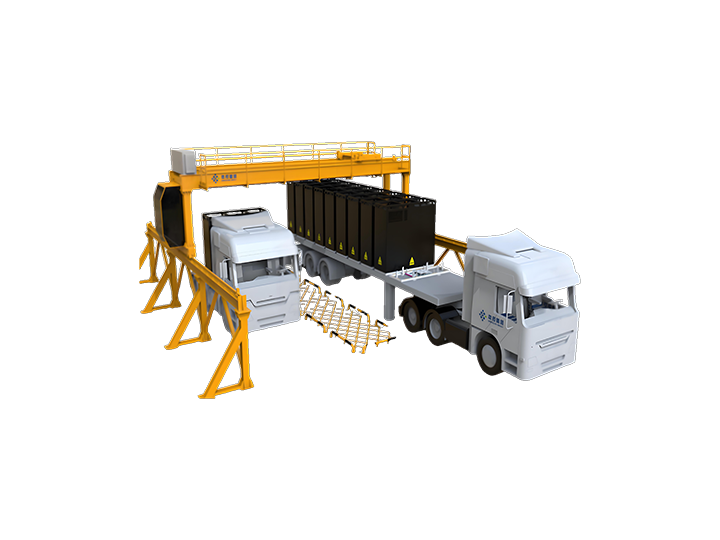

Diverse configurations, battery delivery vehicles and battery swapping stations can be matched as needed
Trailers and tractors can be used separately without the need for dedicated trailers and tractors
Cracking the charging problem, providing more charging options and more flexible locations
Intelligent scheduling, efficient battery swapping, and large storage capacity
High landing efficiency, modular gantry robots, convenient transportation and installation
Can be expanded to 5/6/10 workstations, supporting mining card power exchange scenarios
Flexible and diverse combinations, strong adaptability to different scenarios
Matching the delivery and exchange of electric vehicles significantly improves the service capacity of the exchange station, meeting the needs of high load places such as main lines
Adopting mature and reliable battery swapping robots, supporting multi vehicle hybrid swapping
Mobile design, fast drop off, quick transition, and quick dismantling of stations
Support customization, fully compatible with various types of battery boxes
Parallel layout facilitates entry and makes parking easier
Support the establishment of microgrids as energy storage and consumption points, which can be charged and discharged
|
Name |
Overhead Charging and Swapping Station |
|
Battery Swap Time |
≤6min |
|
Standard Battery |
282/284/350/400/600kWh |
|
Design number of charging stations |
7 workstations + 1 transfer station |
|
Service Capability |
240 train trips per day |
|
Charging Cabinet Power Rating |
/ |
|
Charging Current |
/ |
|
Distribution Capacity |
/ |
|
Operating Temperature Range |
-20℃~55℃（Arctic Edition -40°C） |
|
Operating Humidity Range |
5%-95%RH |
|
Use altitude |
≤2000m（High-altitude version ≤4000m） |
|
Wind Resistance Rating |
≤Level 14 |
|
Seismic Resistance Grade |
Seismic design intensity ≤ 7 degrees, ≤ 0.15g |
|
Whole-Site Protection |
/ |
|
Standard Edition Dimensions |
18.5m*14.0m*8.0m |
