Battery swapping, one-stop solution

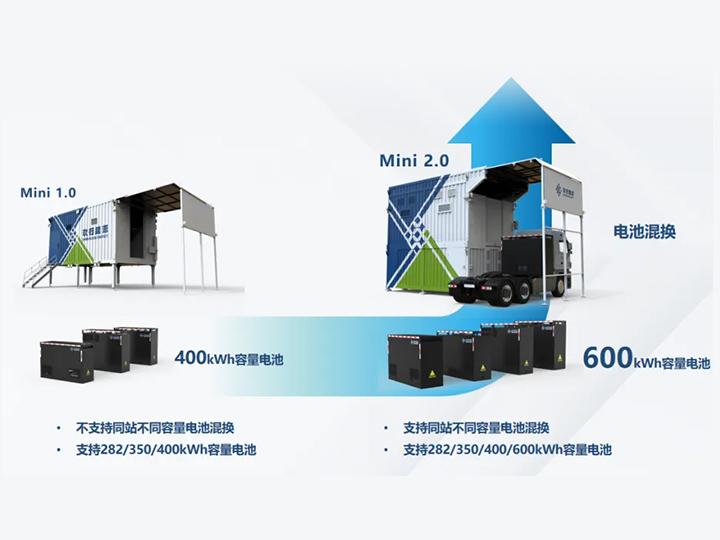

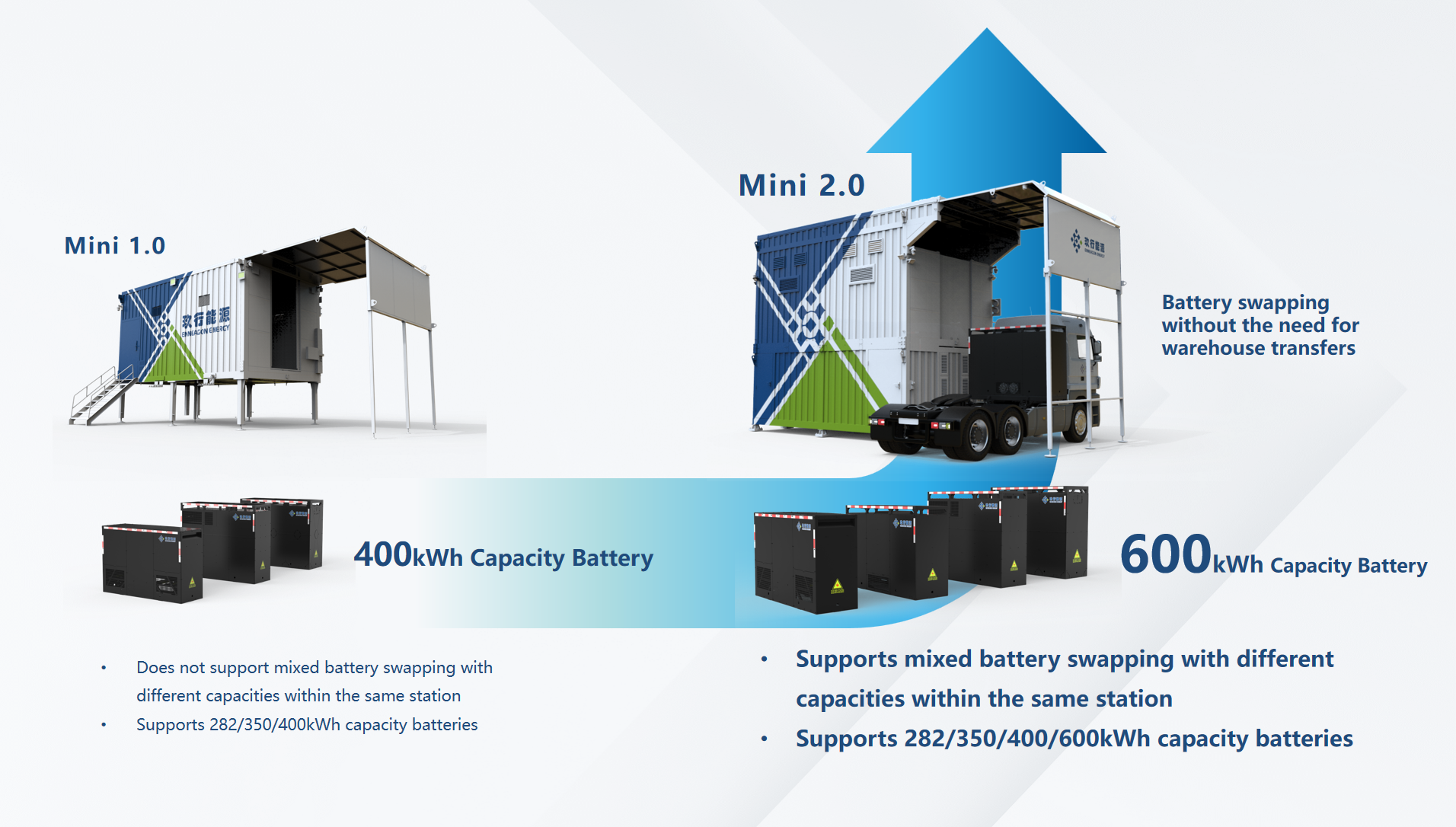

282~600kWh is fully compatible, suitable for both new and old models, as well as batteries of all sizes!

Battery "hybrid mode": Different capacity batteries can be freely switched within the same station

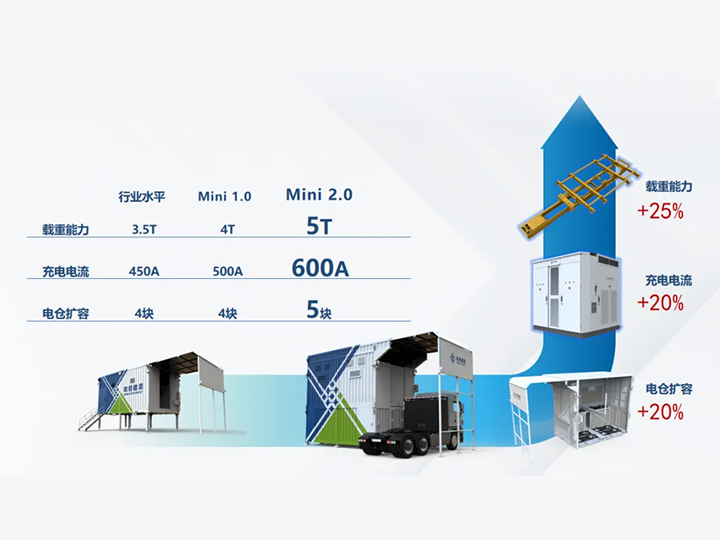

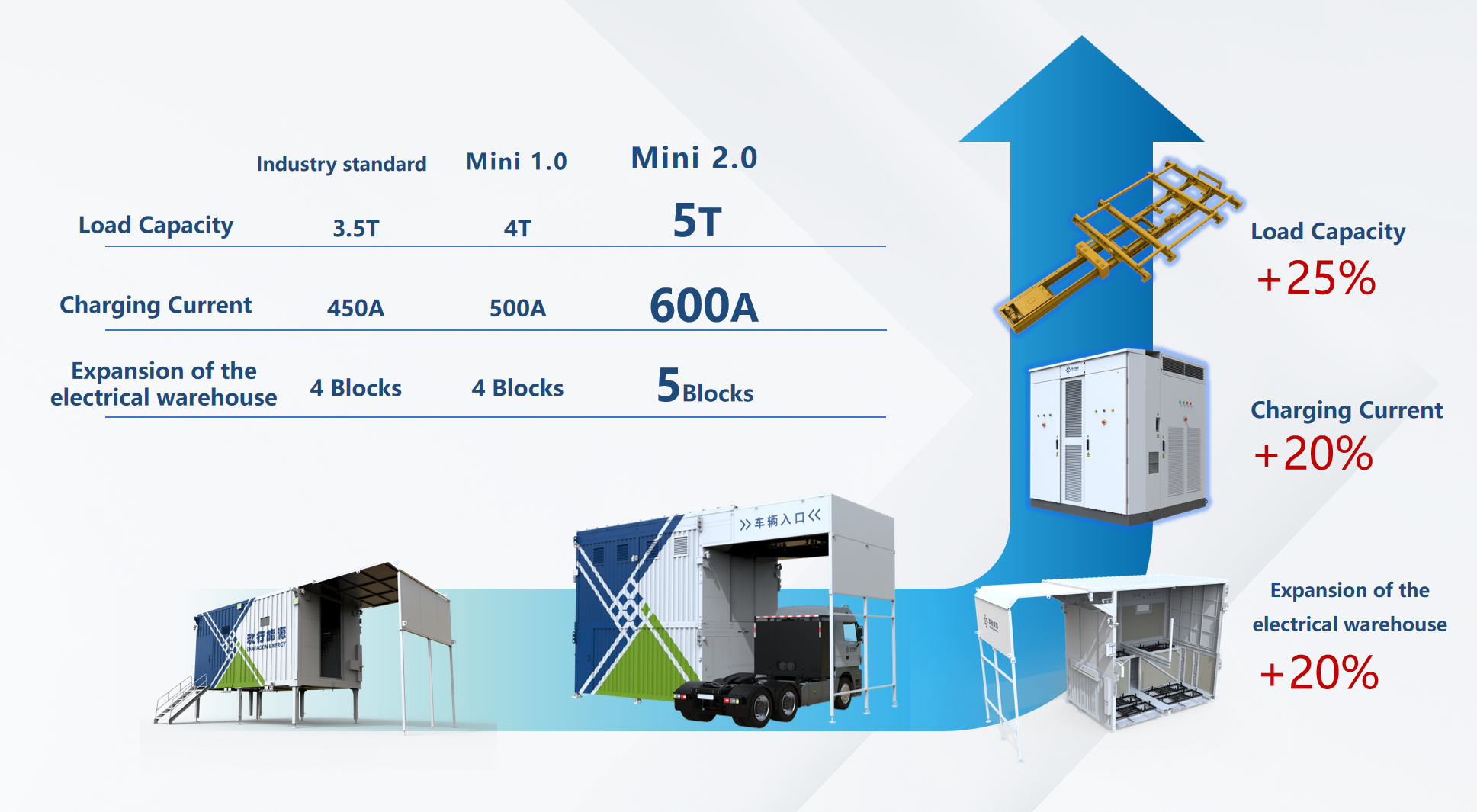

Load capacity 5T+600A fast charging, efficiency fully loaded

Load capacity: increased from 3.5T to 5T (+25%).

Charging current: Single gun increases from 250A to 300A, dual gun increases from 500A to 600A (+20%).

Electric compartment expansion: supports 5 batteries (+20%).

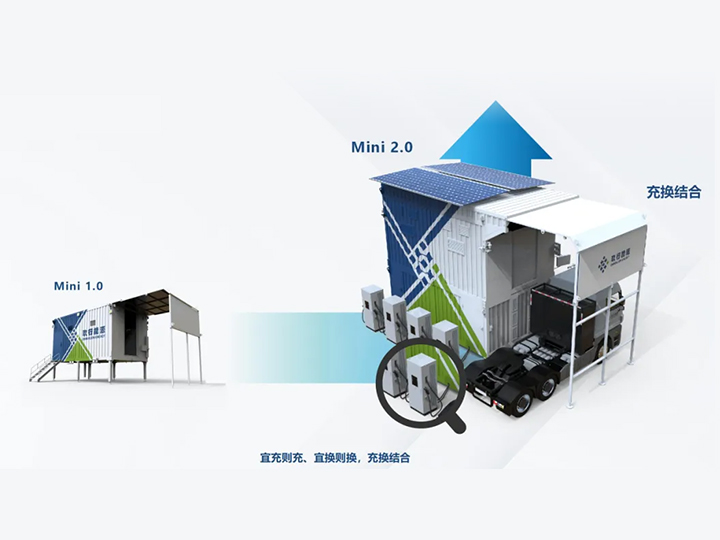

Charge when appropriate, replace when appropriate, combining charging and replacement

The "charging and swapping combination" mode of ENEAGON Energy FX Mini 2.0 battery swapping station breaks the traditional single function limitation of battery swapping stations, realizes dual track parallel swapping and charging, and doubles the utilization rate of station resources.

Battery swapping mode: The heavy-duty truck can be quickly recharged in 3 minutes to meet high-frequency transportation needs (such as logistics trunk lines and port short haul).

Charging mode: Provides flexible charging services for charging and swapping heavy-duty trucks through an external gun cable (optional 450A/500A/600A).

The same Mini 2.0 station is both a battery swapping station and a charging station!

Flexible and versatile, worry free for the future

ENNEAGON Energy FX - Mini 2.0 converter station can achieve flexible deployment and customized product portfolio

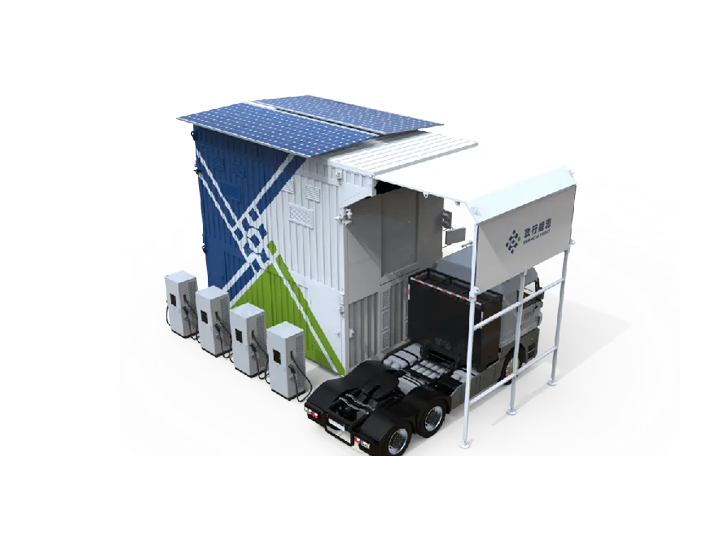

Photovoltaic Mini 2.0: Photovoltaic energy replenishment, energy storage use, rechargeable and replaceable.

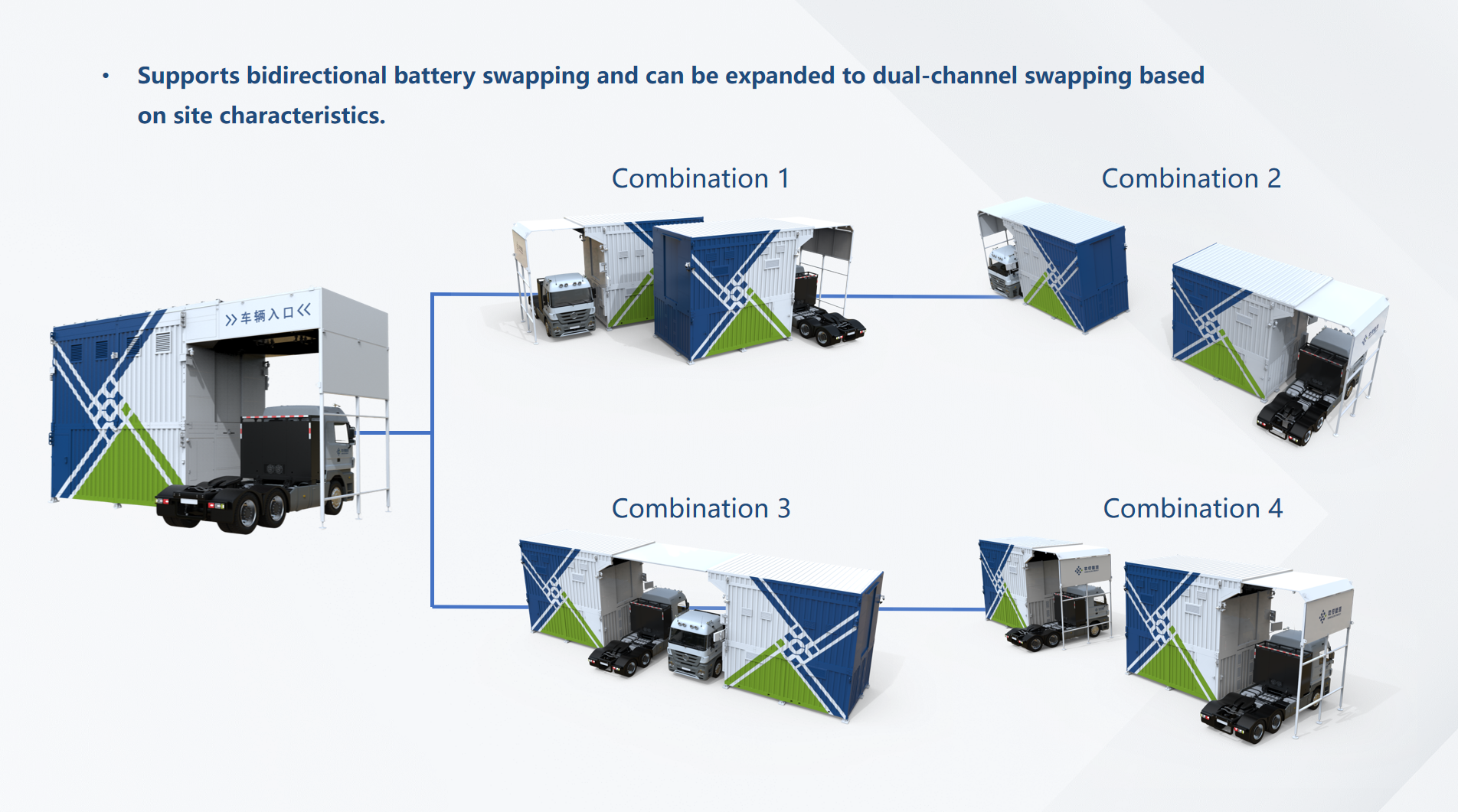

Bi directional battery swapping version Mini 2.0: Supports bidirectional battery swapping and can be expanded to dual channel battery swapping according to scene requirements.

Support multiple combination modes: easily adapt to different types of venues!
