Fully compatible
Easy to build website
Diverse combinations
Strictly build the website
Fully compatible
600kWh battery box
Mobile design without foundation pit, fast station landing
Quick transition, quick dismantling of stations
Flexible and diverse combinations
Strong adaptability to the scene
Closed design, waterproof, dustproof, moisture controlled, and temperature controlled Efficient thermal management

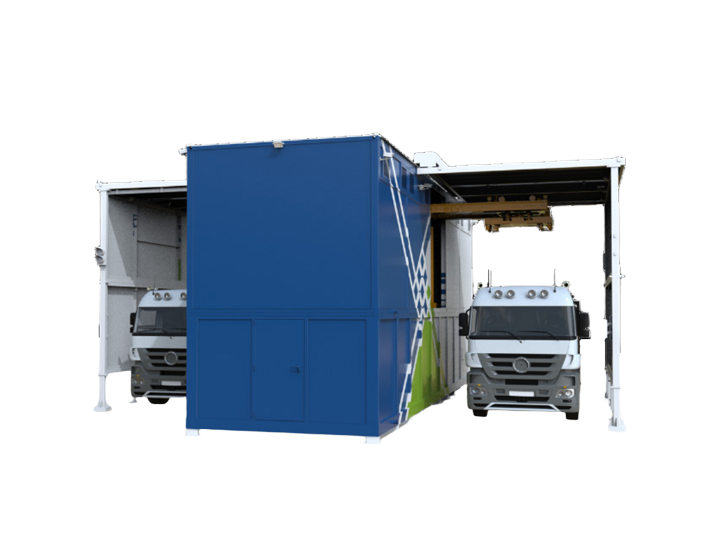

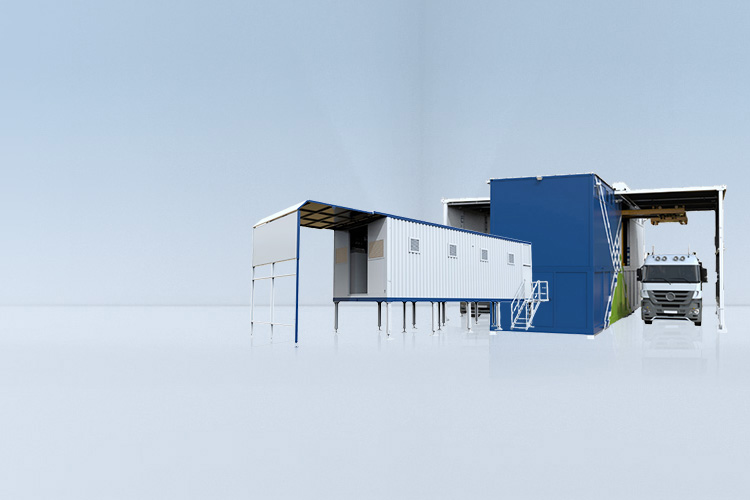

Product Name | 950 Parallel Battery Swap Station | |
---|---|---|
Unidirectional | Bidirectional | |
Battery Swap Time | ≤5.5 minutes | |
Standard Battery | 282/350/400/600 kWh | |
Charging Slots | 7 slots + 1 buffer slot | 7 slots + 1 buffer slot |
Service Capacity | 168 swaps/day | 168 swaps/day |
Charging Cabinet Power | 320 kW × 8 | 320 kW × 10 |
Charging Current | 500A (Dual-gun, supports Chinese & European standards) | |
Power Capacity | 2000 kVA | |
Operating Temperature | -20°C to 55°C (Arctic version: -40°C) | |
Operating Humidity | 5%–95% RH | |
Operating Altitude | ≤2000 m (High-altitude version: ≤4000 m) | |
Wind Resistance | ≤Level 14 | |
Seismic Resistance | Seismic fortification intensity ≤7, ≤0.15g | |
Station Protection | Dust-proof doors, temperature control, LED display, voice prompts | |
Standard Dimensions | 13.5 m × 4.0 m × 6.5 m | 15.0 m × 8.2 m × 6.5 m |
